Description

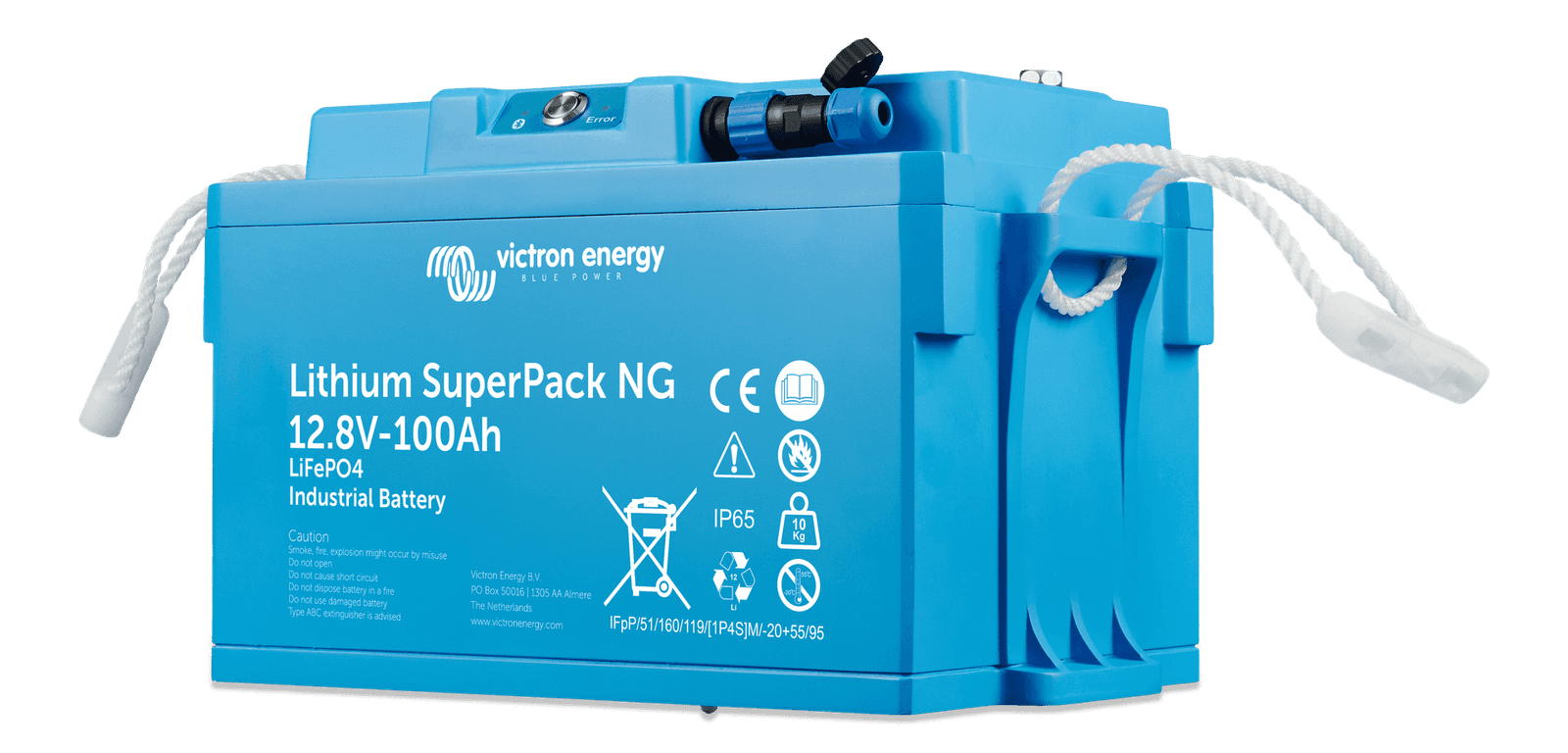

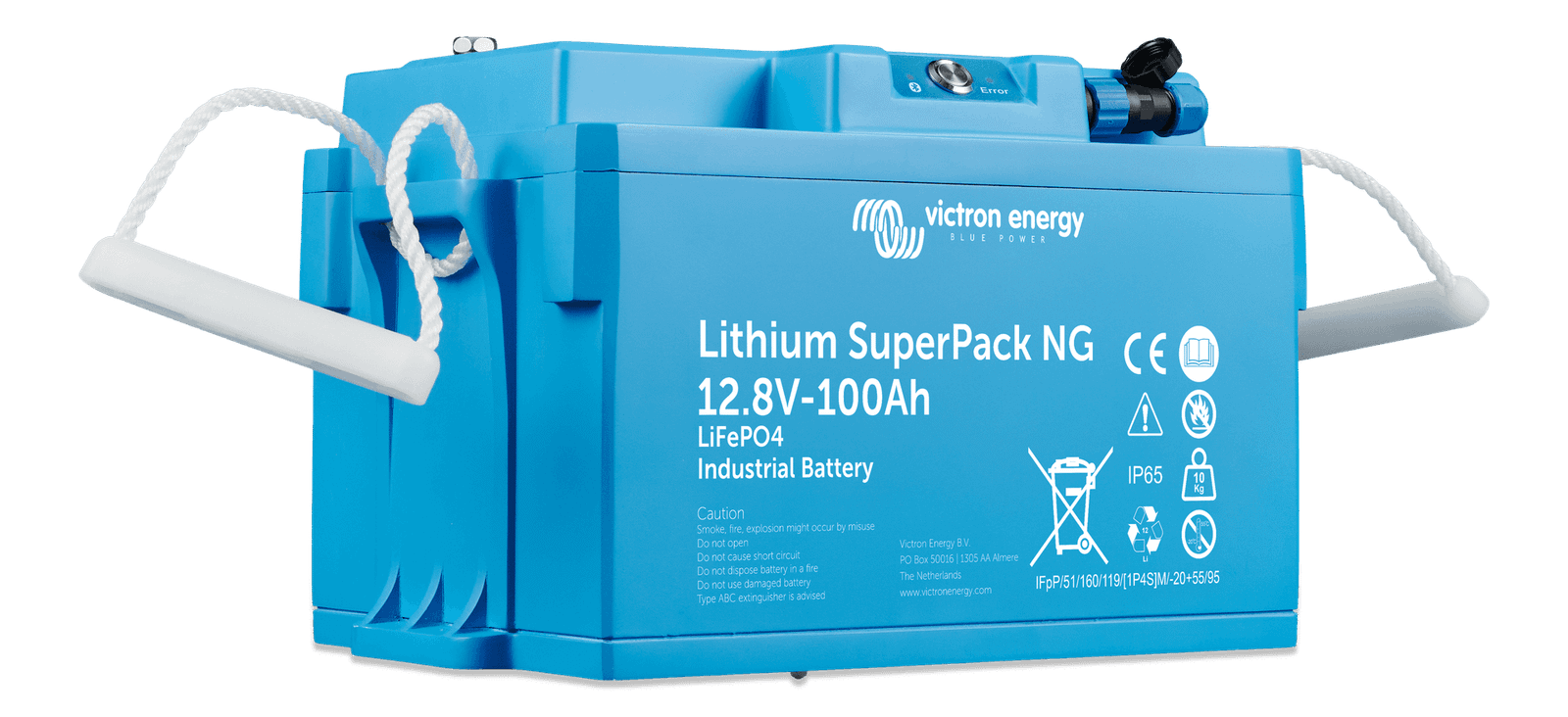

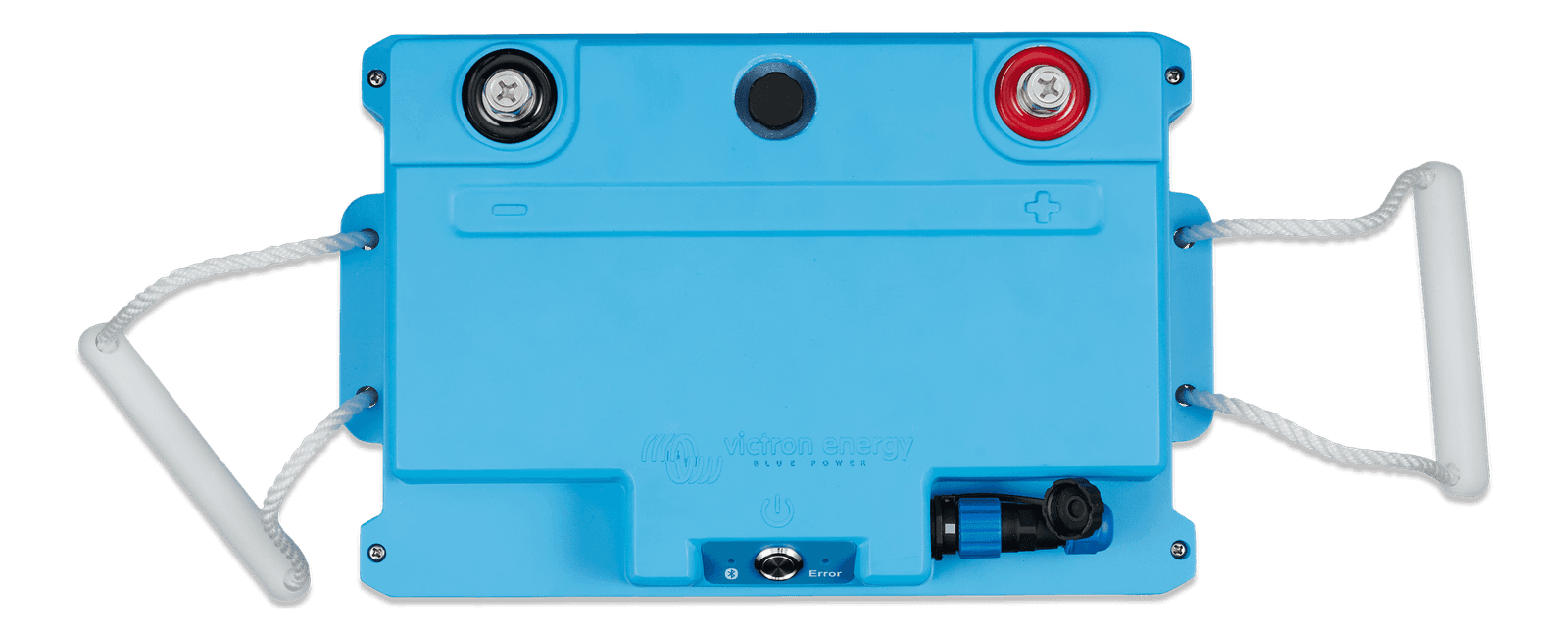

The Victron Lithium SuperPack NG 12.8V/100Ah LiFePO4 Battery provides 1280 Wh of nominal storage for a compatible marine house-battery installation. Its integrated BMS, battery monitor and Bluetooth connection bring protection and battery information together in one unit.
Built-in heating manages cold-weather charging, while the on/off button makes storage isolation straightforward. Check the charging system, mounting space and current demand before replacing a lead-acid battery. Alternator charging requires a suitable DC-DC charger to protect the alternator.
Key features
- 12.8 V, 100 Ah LiFePO4 battery with integrated BMS.
- VictronConnect Bluetooth monitoring and configuration.
- Self-heating, on/off switch and IP65 enclosure.
- External Feedback Signal for compatible system protection or charger control.
- Parallel connection supported within the manufacturer current limits; series connection is not permitted.
Specifications
- Nominal voltage: 12.8 V DC
- Nominal capacity at 25°C: 100 Ah
- Nominal energy: 1280 Wh
- Chemistry: Lithium iron phosphate (LiFePO4)
- BMS: Built in
- Recommended continuous discharge current: 50 A
- Maximum continuous discharge current: 200 A
- Recommended charging current: 30 A
- Maximum continuous charging current: 100 A
- Dimensions (L x W x H): 273 x 173 x 173 mm; add 15 mm for terminal screws
- Weight: 10.7 kg
- Protection: IP65
- Terminals: M8 female threaded inserts
- Series connection: Not permitted
- Parallel connection: Supported, subject to system current limits
- Monitoring: Bluetooth via VictronConnect
- Heating: Integrated self-heating
- Operating temperature: -30°C to +60°C; charging below 0°C paused until cells are heated to a safe temperature
Included
- 12.8V/100Ah SuperPack NG battery with integrated BMS and monitor
- Mounting brackets
- External Feedback Signal connector, Victron SPR00310
- Terminal fixing screws
Installation cables, fuses, charger, DC-DC alternator charger and any external system-control equipment are not included. Professional installation and correct charging settings are required.
Manufacturer warranty
Three-year limited Victron lithium-battery warranty from original end-user purchase, capped at 42 months from the Victron invoice date. Proof of correct battery use is required. Conditions and exclusions apply; claims are handled through the original seller.
Full manufacturer warranty terms
Full manufacturer warranty terms
Condition: Brand new.
There are no reviews yet.
