Description

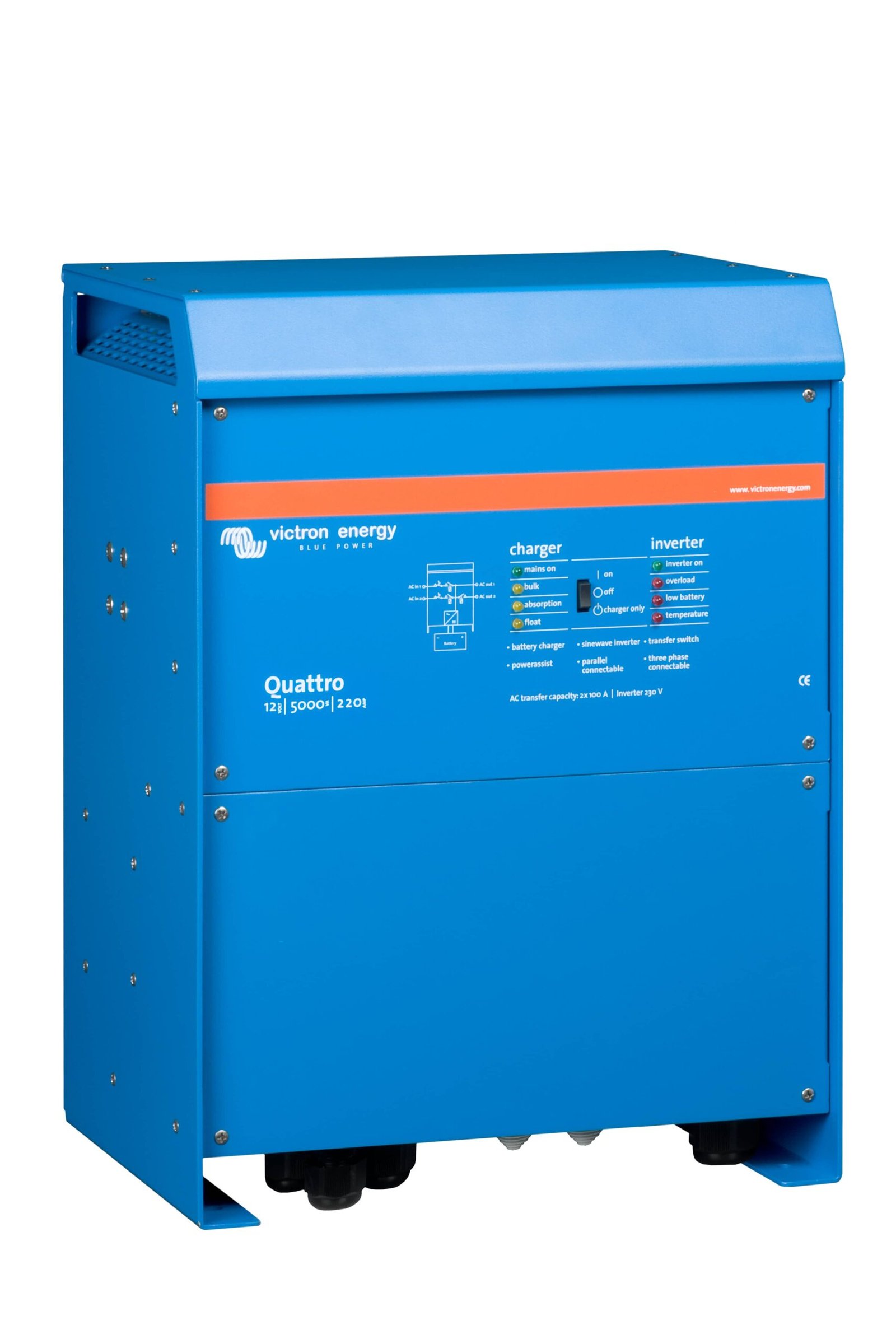

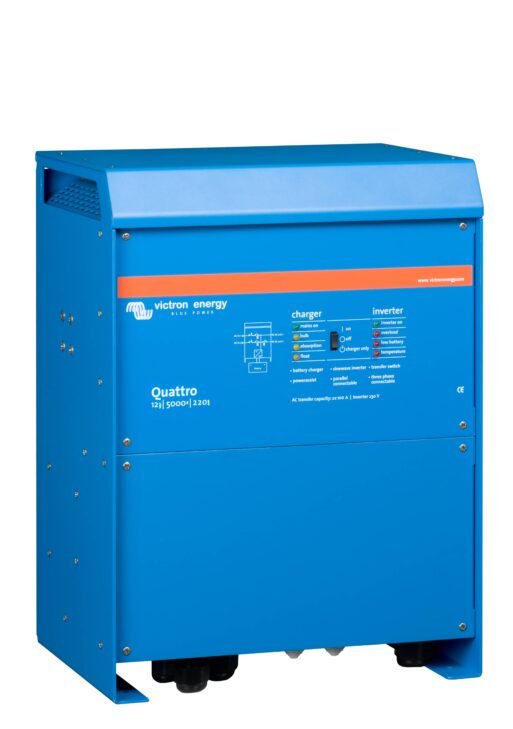

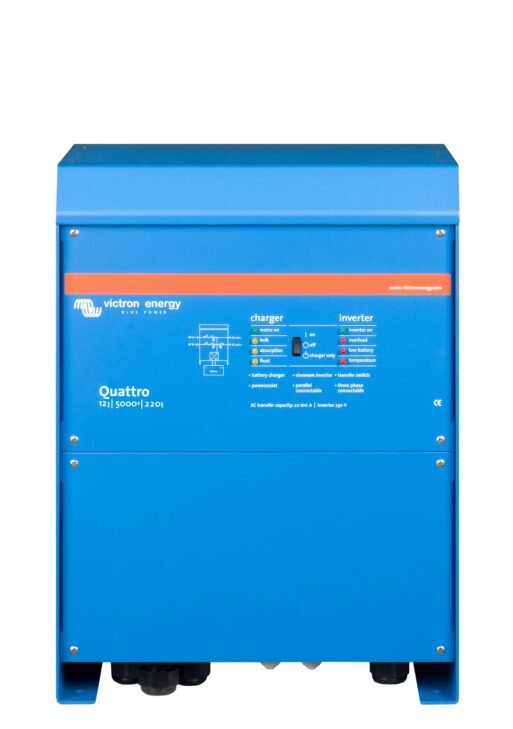

A dual-input inverter/charger for 12 V marine power systems. The Quattro 12/5000/220-100/100 can manage shore power and a generator while providing 4,000 W continuous inverter output at 25°C.
Two AC inputs allow automatic source selection. PowerControl manages available AC current, and PowerAssist can support short peak loads from the battery bank. The integrated charger provides up to 220 A, with 100 A transfer capacity per AC input.
Exact configuration
12 V battery model with hard-wired 230 V AC connections. Not a 120 V model. Batteries, external fuses, installation cables, GX monitor and remote-control accessories are not included.
Specification highlights
- Battery system: 12 V DC
- Dimensions (H x W x D): 470 x 350 x 280 mm
- Weight: 34 kg
- AC output: 230 V AC, 50 Hz; 60 Hz configurable
- Continuous output at 25°C: 4000 W
- Maximum charge current: 220 A
- Transfer switch: 100 A
- Communications: VE.Bus
- Inverter rating: 5000 VA
- AC inputs: 2 independent AC inputs
- Protection: IP20
Supplied equipment
- Quattro 12/5000/220-100/100 unit
- Product documentation
- Battery temperature sensor
Warranty
Five-year limited warranty from the original end-user purchase, capped at 66 months from the Victron invoice date. Covers defects in materials and workmanship, subject to policy exclusions. Claims are handled through the seller or original Victron dealer. Victron decides repair, replacement or partial credit. Manufacturer cover excludes removal, transport and reinstallation; misuse, incorrect installation and unauthorised modification are excluded. Statutory rights are unaffected.
Installation
Professional installation is required. Specify the correct battery bank, DC protection, cable sizes, ventilation and earthing before installation. Configure charging for the battery chemistry and install current applicable firmware. Do not install in a wet or explosive atmosphere unless the manufacturer expressly permits it.
Full manufacturer warranty terms
Condition: Brand new.
