Description

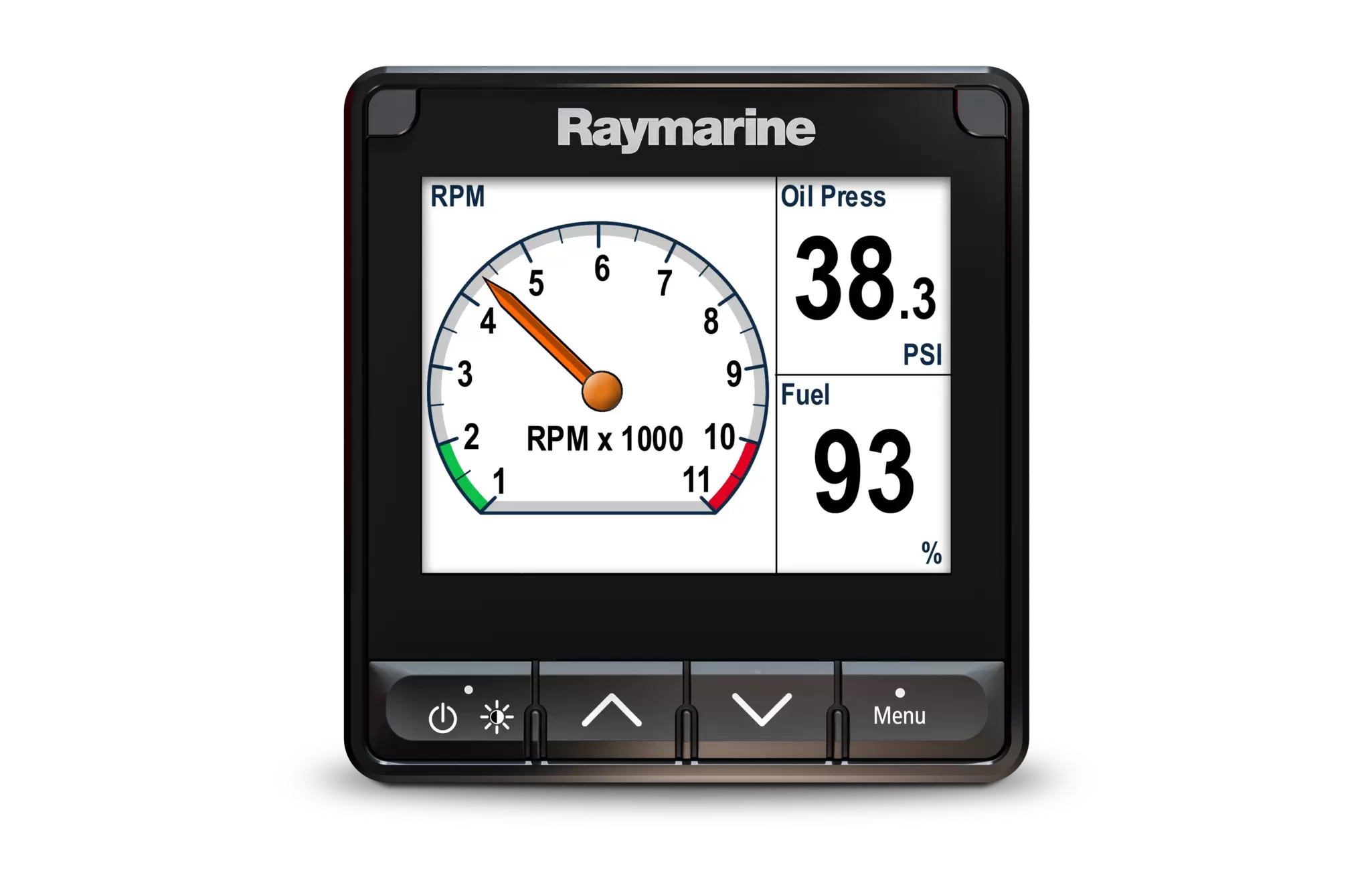

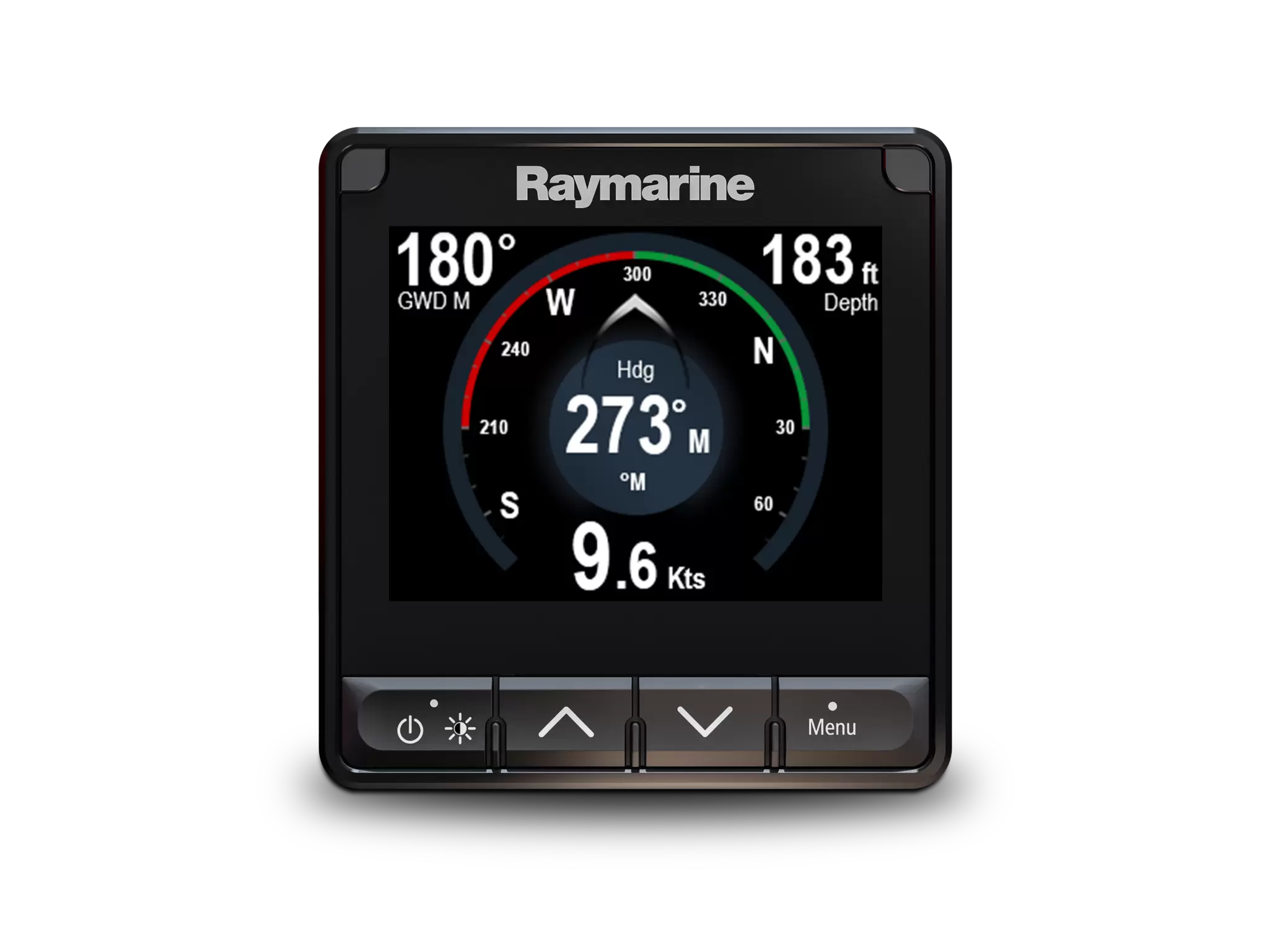

A 4.1-inch colour instrument display for configurable wind, depth, speed, engine and navigation data. The optically bonded screen supports digital, analogue and graphical views with day/night palettes. Supplied as the display-only E70327; compatible sensors, network components and any required adapters are separate.
Key specifications
- Display: 4.1-inch optically bonded TFT LCD
- Resolution: 320 x 240 pixels
- Brightness: 1,200 cd/m²
- Colours: 16-bit, 64k
- Water rating: IPX6 and IPX7
- Power input: 9–16 V DC
- Nominal supply: 12 V DC
- Power consumption: 1.7 W
- Current: 143 mA
- NMEA 2000 LEN: 3
- Connection: 1 x SeaTalkng
- Operating temperature: −25 to +55 °C
Included
- i70s display with black bezel and button pad
- Alternative gunmetal bezel
- Suncover
- 400 mm SeaTalkng spur cable
- Panel gasket
- Cable suppression ferrite
- Four M3x16 mounting screws
- Documentation
Not included
- Depth, speed, wind or other sensors
- iTC-5 converter
- SeaTalk/NMEA 2000 adapters and network backbone where required
Installation and compatibility
- Display only: this is E70327, not the T70216 instrument/sensor pack.
- Functionality depends on compatible data sources. Analogue transducers require an appropriate converter such as iTC-5.
- First-generation SeaTalk and NMEA 2000 DeviceNet networks require appropriate adapters. AIS repeater is not an AIS receiver or transmitter.
Warranty
Raymarine’s standard limited warranty is two years. Eligible new products can receive a free extension to three years when registered within 90 days of first purchase. Regular commercial, military, law-enforcement and related use does not qualify for this extension unless Raymarine agrees in writing. Proof of purchase is required; the extended term also requires proof of registration. Standard cover is return-to-manufacturer, subject to exclusions and claims procedures; onboard service requires qualifying certified installation in the same geographic region. Statutory rights are unaffected.
Condition: Brand new.
Manufacturer product information | Manufacturer warranty details
