Description

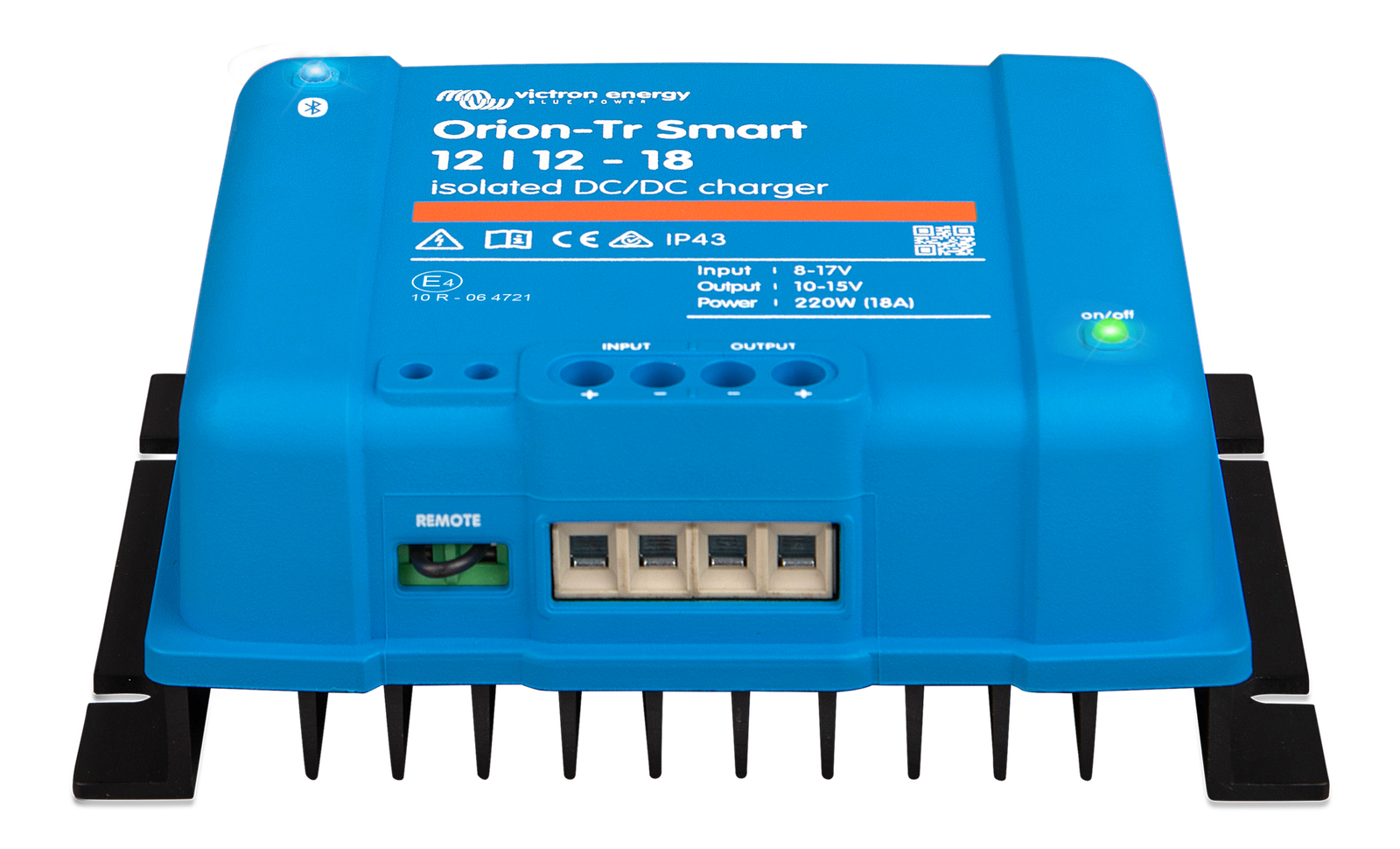

The Orion-Tr Smart 12/12-18A (220W) Isolated DC-DC charger is designed for dual-battery systems in vehicles and boats. Its isolated input and output can use separate grounds. Configure the charging profile in VictronConnect for the connected lead-acid or lithium battery.
Key specifications
- Nominal input: 12 V
- Nominal output: 12 V
- Continuous current up to 40°C: 18 A
- Continuous power at 40°C: 220 W
- Input range: 8–17 V
- Data communication: Built-in Bluetooth
- Galvanic isolation: Yes
- Weight: 1.3 kg
- Dimensions (H × W × D): 130 mm × 186 mm × 70 mm
- Protection rating: IP22 (connection area),IP43 (electronic components)
Included
- Orion-Tr Smart 12/12-18A (220W) Isolated DC-DC charger
Installation notes
Engine-running detection and remote on/off control support integration with the vehicle charging system. Use correctly sized cables and external fusing, and follow the installation manual. Batteries, cables, fuses and a remote switch are not included.
Warranty
Victron Energy provides a standard 5-year limited warranty on power products, subject to its warranty policy and exclusions. Contact the original supplier for claims.
Condition: Brand new.
Manufacturer product information | Manufacturer warranty details
